How It Works

Compressed air flows through a small circular opening to generate a high velocity. The air expands into the first vacuum chamber to generate vacuum. The combination of compressed air and vacuum flow from the first chamber flows into a second chamber where it produces vacuum. The combination from the second flows into the third to also produce vacuum. This design is capable of vacuum levels up to 27.5"Hg.

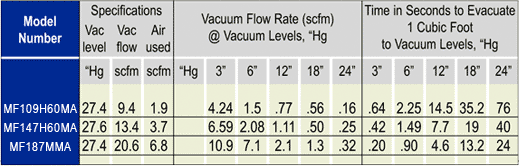

Performance Data  » Download Complete and Detailed Specification Sheet (PDF)

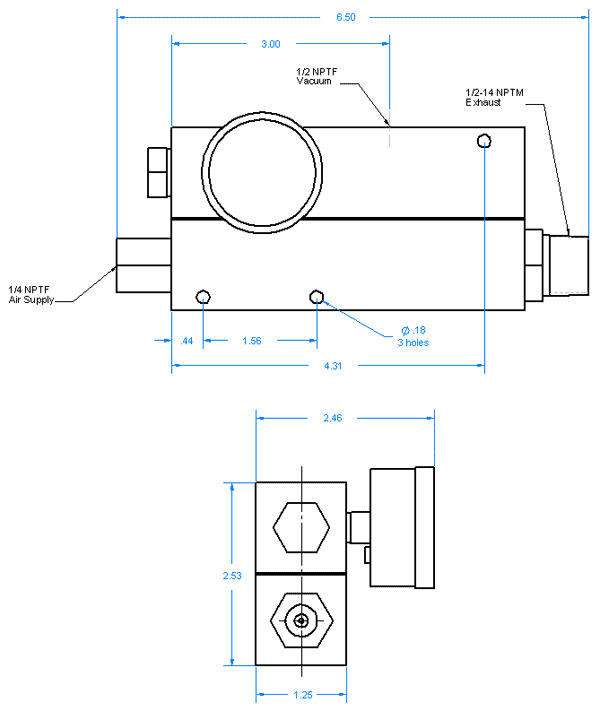

Dimensions

3D Model
