    ITD Vacuum Sleeve Insert
Available Models: ITD: 209, 261

» How It Works
» Performance Data
» Dimensions
» 3D Model




PumpStore

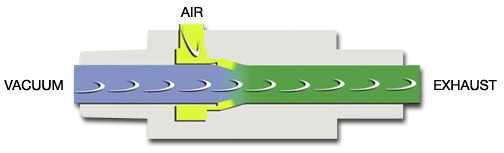

How It Works

Compressed air flows through a small annular opening to generate a high velocity. This air expands into an unobstructed vacuum passage allowing solid material to flow through the pump with no decrease in vacuum flow. This design is capable of vacuum flows up to 7.9 scfm.

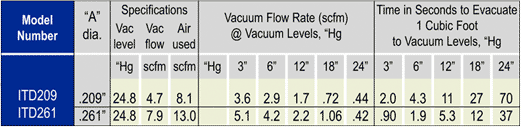

Performance Data   » Download Complete and Detailed Specification Sheet (PDF)

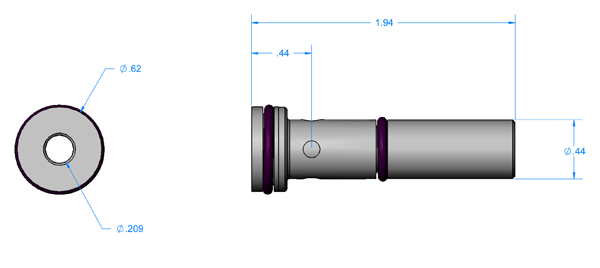

Dimensions












Engineering Files
