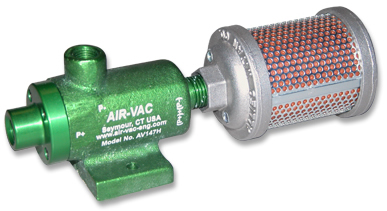

    AV Single Stage Vacuum Pumps
Available Models: AV: 116H, 147H, 191H,
191M, 191L

 » How It Works
» Performance Data
 » Dimensions
» 3D Model

PumpStore




How It Works
Compressed air flows through a small circular opening to generate a high velocity. This air expands, resulting in decreased pressure to provide vacuum levels up to 28.2"Hg. The vacuum port is perpendicular to the air supply.

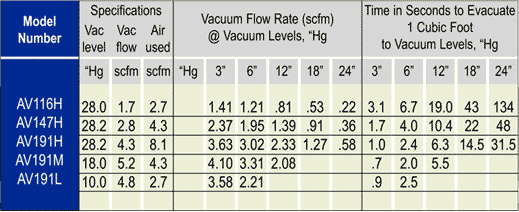

Performance Data  » Download Complete and Detailed Specification Sheet (PDF)







Dimensions















3D Model
