How It Works

Compressed air flows through a small circular opening to generate a high velocity. This air expands, resulting in decreased pressure to provide vacuum levels up to 28.2"Hg. The vacuum port is perpendicular to the air supply.

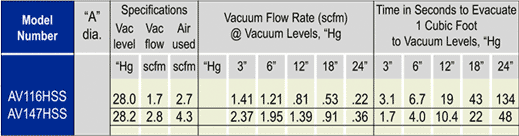

Performance Data

Dimensions

3D Model
